Turntable Vise and Turntable
Made in Nebraska, USA!
Click photos to enlarge

To see all Lindsay vises and options click here

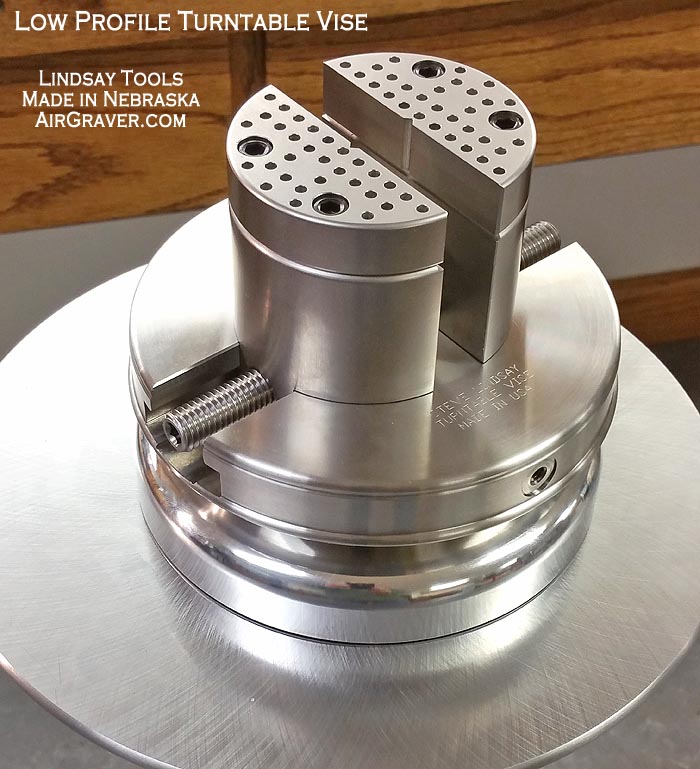

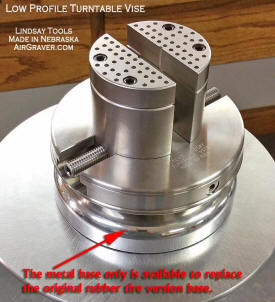

Low Profile Turntable Vise


(Turntable and vise sold separately)

Low Profile Turntable Stainless Vise Features
**Threaded holes in base jaws for custom fixtures and homemade jaws.
Made from Stainless with Hardened Jaws, Pin-Plates and Screw
**Includes Pin-Pates, base and wrench
**Diameter 6" (same diameter as Goliath vise)
**Jaw width 3"
**Maximum  jaw opening 3.4".  Wider objects can be held using pin plates (5.5") or by making homemade jaws (wood, plastic, or metal) as needed and using supplied screws to hold them on.
**Overall height 4.5"
**Jaw height: with Pin-Plates 2.5" - without Pin-Plates 1.75"
**
Weight 15.5 lbs.

Benefits to low profile
**The low profile allows tilting of the block without the viewing location moving away from the field of view in a microscope. It stays centered, in a manner similar to the larger Glide-Lock vise and the Dovetail low profile vise.
** The vise has no bearings.  It unitizes the bearings of a turntable.  The absence of bearings in the vise allows a lower profile.

Low Profile Turntable Vise Price $505 (out of stock)

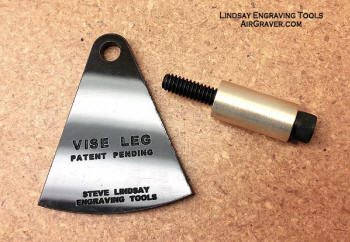

Vise Leg Support

Attach this Vise Leg to the Low Profile Turntable Vise to support a barrel or non-balanced weighed objects on one side to prevent the vise from tilting from the weight.

(Please click photos to enlarge)
Vise Leg Support - for Low Profile Turntable Stainless Vise (Vise not included)
$26.95
Add To CartView Cart


Leather Ring Fixture for Vise pin plates

Place these in vise pin plates to hold rings or other items.
They fit the pin plates on the Low Profile vise, later Goliath vises and PalmControl® vises. Find more information about these holders on the vise accessory page.
Leather Ring Holder Price $56
add_to_cart.gif  view_cart.gif


Inside Ring Holder for Vise pin plates

Place these in vise pin plates to hold rings from the outside, to allow inside engraving, as well as access to the top of the ring. They are made from solid stainless and the faces are leather lined.  Find more information about these holders on the vise accessory page.

Inside Ring Holder for Vise pin plates Price $76
add_to_cart.gif  view_cart.gif


Tips and notes about turn-tables

How to center a turntable under a microscope
Place your vise on top and approximately in the center of the turntable under your microscope. Adjust the distance/focus on your microscope until your project, or the jaws of the  vise are in focus. Next, spin the turntable while looking through the microscope.  To center, while spinning the turntable, look into the scope and push the whole turntable and/or your scope around until the view seen in the scope is spinning right in the middle of the field of view.    From here, leave the position of the scope and position of the turntable alone.   To get to another location on the item being engraved in the field of view, simply push the vise around on top of the turntable.    This process is the same for the Glidelock vise, even though the turntable is built into the vise.


Stand and Vise Package
Lindsay TurnTable Stand - Low Profile TurnTable Vise and - Vise Leg

Find more information on stand page.



Lindsay Heavy Duty Turntable

(PalmControl Vise in photo for size comparison.
The vise is not included in price. )



FeatherTouch  Steve Lindsay Turntable
Specifications:
Improved turntable bearing, pat. pend.  The unique turntable bearing is reliable for smooth/start/stop movement that are required for fine shading engraving work.
10" diameter steel turntable.  Weight 35 lbs
FeatherTouch Turntable - $499 Add To Cart

Note: Price may be adjusted down or up at later date after Steve makes more of them and he can determines production costs closer.  So after you receive your turntable please do not be offended if you see the price of them lower, or possibly higher

Turntable is made from solid steel and can rust.  The surface can rust more easily in an area of high humidity.  To keep in like new condition wipe it down with either a light oil or for better protection using the rust and tarnish preventer cream.



Stop rust & tarnish. Used to help prevent corrosion of steel, brass and copper.  Use it to wipe on metal to hope prev+ent rust or tarnish.   A good method to apply is cut a rag approx 3"x3" square and coat it well with the cream working it through the rag.    Use it wipe down the object.  Store the rag in a plastic bag that can then be reused.   The cream is non toxic .    However, if you are allergic to sheep's wool it could cause an allergic reaction.

 Stop rust & tarnish cream 2-oz tube $19.95
Add To Cart






Thanks for Ray Cover for this information on a source of an inexpensive turntable that is fairly heavy and rigid.

The Lindsay Turntable has been built with large ball bearings and a larger diameter race to increase stability without wobble.   However, if at this time you cannot justify the price of my turntable, Engraver Ray Cover discovered more cost effective solution: a Shimpo turntable that can be found on pottery making craft sites.  I assume they are China made. At the bottom of the page of this link, is the "Shimpo" turntables list of banding wheels. The one to get is model BW-25L.  It is 9.875" in diameter x 2.25" high and at $68.88 (at the time of writing) it's hard not to recommend it for beginners or anyone with a tight budget.  I noticed a little wobble in the one I tested, but it wasn't bad.




Visit the vise holder accessories page at this link




Vises home page link
